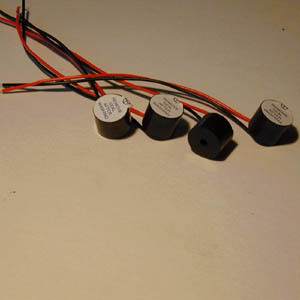

Buzzer miniature with short leads, 1.5 volt, Pk/ 10. (TS2035)
A small electronic buzzer with the following specifications. Rated voltage 1.5 Volts DC. Sound level at rated voltage, 75 dB at 10 cm. Max current 30 mA Diameter 12 mm Height 9.5mm
As this is a buzzer rated at 1.5 Volts it is suitable for use in battery and bulb work at primary school level. The twin short leads have the insulation stripped for immediate use.
Note that the buzzers are supplied with a paper cover over the centre hole of the buzzer.
Remove this to ensure that sound is audible.
