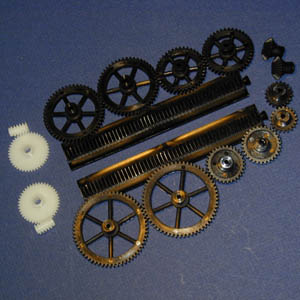

Gear set: Nylon 66 miniature mixed sizes. (TS0488)
This set includes the following gears:
1. A series plastic precision gears having 30t x 20mm diameter, 40t x 28mm diameter, 50t x 33 mm diameter, 60t x 39mm diameter. All are 3mm thick with thicker hub and 2mm shaft hole. Material Nylon 66
2. Gear rack in lengths of 100mm. Rack width 6mm on connecting base of 15mm wide Nylon. Each length can be joined to another by a dovetailed interlocking joint and is compatible with this range of miniature gears.
3. 45 degree bevel gear plastic 22 tooth gear with a diameter of 12 mm and a 2 mm diameter centre hole.
4. Worm drive gear( 2mm centre hole) with a 42:1 ratio and each comes with a matching crown gear wheel 22mm diameter 1.5mm thick centre hole of 4.00mm.
The pack of gears includes 2 of each type of the above gear types.
Useful when designing and constructing 'Automata' models.
