Carbon Fibre



Carbon Fibre tube 1000mm x 2.5mm OD x 1.5mm ID ea (TS2507

Price:





QTY:


Carbon Fibre tube 1000mm x 2.5mm OD x 1.5mm ID ea (TS2507

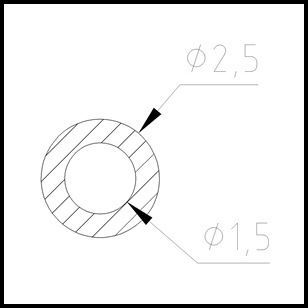

Carbon Fibre tube measuring 1000 mm x 2.50 mm outside diameter and internal diameter of 1.50 mm.

Colour black throughout material.

High strength to weight ratio, single length weighs  2.2 grams.

This material is pultruded product and has uniform composition (unidirectional reinforcement) throughout. It does not exhibit weave characteristics or the appearance of filament wound materials.

It is suggested that care is exercised when cutting this hollow material.

Use only very fine tooth hand saws or thin fine files for cutting and shaping this material to length. Rotary cutting tools such as 'Dremel' or similar electric power tools can be used to shape and cut this material. Use apropriate eye protection in a well ventilated area.

Do not use excessive clamping pressure when holding in a vice. Although the material is exceptionally strong longitudinally, crushing pressure exerted by a vice can cause deformation. Additionally to maintain surface integrity use only soft jaws when holding in any vice or clamp.
